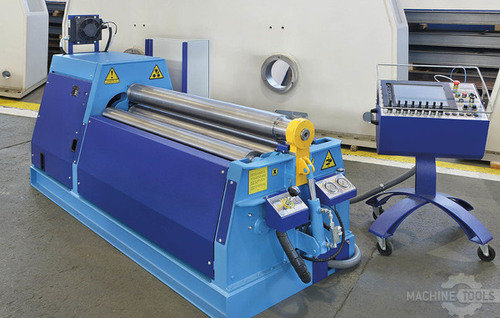

4ROLL DUAL INITIAL PINCH PLATE PREBENDING
2000 X 6 MM GRAPHIC CNC_EVO
bending capacity: -Width of plate: 2000 mm
-Thickness of plate rolling: 6 mm
-Pre-bending thickness 4 mm
-FE -ST- STAINLESS- AISI -

Rolls length mm.2050
-Upper roll mm. 160
-Pinch roll mm. 140
-Side rolls mm. 120
fully hydraulic operated with overload protect
-infinitely variable speed control -proportional valves
safety trip wire emergency stop / oil cooler automatic /

Rolls hardened 55Hrc
/ conical bending attachment hydraulic cone bending feature with contrast hardened pad / hydraulic drop-end front open - top roll tilt-up - wide open easy unload/

CNC EVO autocalculation package / multi radius plate rolling programmable / CAM user interface / CAD drawing import / memory storage hdd virtual infinite / usb stick memory portable/backup / local network transfer interface for remote monitoring /
