PINES 5T管材和棒料折弯机

照片 (6)

品牌
型号
产品编号
463809
地址
Ohio
美国
库存号
2116

更多此型号产品信息

要查看关于PINES 5T的更多信息,如品牌资讯,图片,视频等,请点击此处

产品编号
463809
品牌
型号
地址
Ohio
美国
库存号
2116

种类

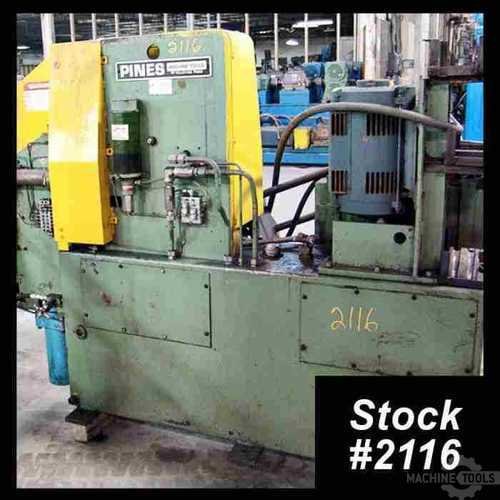

5 Ton x 1″ PINES #5T Tube Bender

规格参数

UTUBE NUMBER: 2116

MANUFACTURER: PINES

MODEL NUMBER: 5T

SERIAL NUMBER: 44362-77318

YEAR:

SPECIFICATIONS:

Material:

Round Tubing: Non-Ferrous, 25,000 psi: 1″ x .072″ (two)

Mild Steel, Y.P. 40,000 psi: 1″ x .065″ (two)

Stainless, Y.P. 60,000 psi: 1″ x .049″ (two)

Square Tube: Mild Steel: 7/8″ x .035″ (two)

Round Bar: Mild Steel: 5/8″ (two)

Square Bar: Mild Steel: 1/2″ (two)

Hydraulic Power: 5 Tons

Bends Per Hour: 2 Tubes, 1800/Hour

Maximum Capacity: 1″ x .065″ Wall, Steel Tube

Maximum Angle: 100 Degrees, Normal Tooling

Maximum C.L.R.: 4-1/2″, 90 Degrees Bend or Less

Minimum C.L.R.: Approx. 2 to 3 x Work Diameter

Height Floor to Dies: 40″

20 HP Motor

NOTE: Test Run on 2/26/09

OVERALL DIMENSIONS: 3′ 4″ x 7′ x 5′ 4″

APPROXIMATE WEIGHT: 3,100 Lbs.

LOCATION: Universal Warehouse, Perrysburg, Ohio

VIDEO:
