BROTHER TC-31B鑽孔攻絲加工中心

12035 a
照片(8張)

更多此型號產品資訊

要查看關於BROTHER TC-31B的更多資訊,如品牌資訊、圖片、視頻等, 請點擊此處

參數

參數改為公制
X軸行程
13.8 "
Y軸行程
9.8 "
Z軸行程
13.8 "
主軸轉速
22000 rpm
刀庫容量
26
主軸錐度
7/24 #30
控制系統
數控 (CNC-B00)

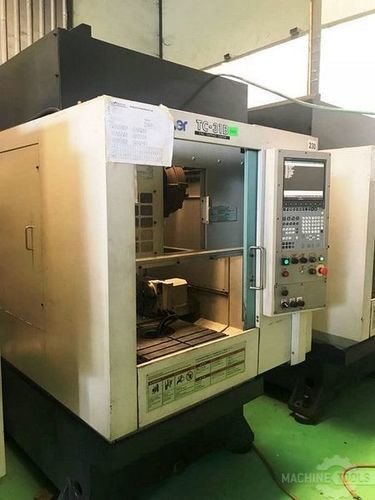

Photograph
BROTHER MODEL TC-31B HIGH SPEED CNC DRILL/TAP MACHINING CENTER WITH PALLET CHANGER
General Specifications
Z-Axis travels 13.8"
X-Axis travels 13.8"
Y-Axis travels 9.8"
Work area/Table size 19.7" x 10.6"
(2) Tables index 180 degrees
Pallet change time 2.3 seconds
Max. part weight (one side) 176 Pounds
Spindle speed (Max. 6000 when tapping) 16-16,000 RPM
Max. Tapping speed 6,000 RPM
Spindle taper 7/24 No. BT30
Tool capacity 26 (+1)
Complete with CNC-A00 Series Control
Rapid traverse 1968 IPM
Cutting feed rate .04 - 787 IPM
Tool to tool time .7 seconds
Chip to chip time 1.7 seconds
Main spindle motor (10 min/continuous) 11.1/6.4 kW
Max. tool length 7.9"
Max. tool diameter 4.92" Machine dimensions 55" x 114"x 88"H Machine weight (approx) 4,600 lbs.
Motor Specifications
7.5/5 Kw Main Spindle Motor
Equipped With
Brother B00 CNC Control
26 Position Tool Changer, side mount
(2) 19.7" x 10.6" Pallets
Coolant system
(1) 4th Axis Rotary Table
VIDEO: https://youtu.be/1ZTwPO-8jug

Serial Number
115249 Year
2012 Location
PROSPECT HEIGHTS, IL
