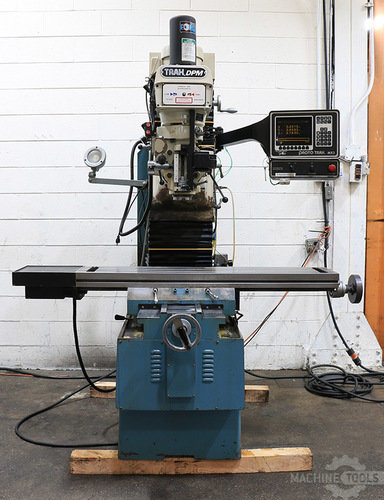

SOUTHWESTERN INDUSTRIES TRAK DPM 3床身銑床

照片(10張)

價格
$ 10,500.00 USD
編號
468934
年份
1995
地址
New Jersey
美國
庫存號
159108

更多此型號產品資訊

要查看關於SOUTHWESTERN INDUSTRIES TRAK DPM 3的更多資訊,如品牌資訊、圖片、視頻等, 請點擊此處

編號
468934
年份
1995
地址
New Jersey
美國
庫存號
159108
價格
$ 10,500.00 USD

種類

31" X Axis 3HP Spindle Southwest Ind. DPM-3 CNC VERTICAL MILL, Trak MX 3 Axis Cntrl, HandWheels, Bed Type, #40PDB

參數

參數改為公制
工作臺寬(W)
10 "
工作臺長(L)
50 "
軸數
3
縱向行程
31 "
橫向行程
17 "
功率
3 hp
主軸轉速
4200 rpm
主軸錐度
40

TRAK 3-AXIS CNC BED MILL w/HAND WHEELS

MODEL: DPM, S/N: 95-2143, NEW: 1995



SPECIFICATIONS:

TABLE SIZE ........................ 10" x 50"

TABLE TRAVEL (X) .................. 31"

SADDLE TRAVEL (Y) ................. 17"

VERTICAL HEAD TRAVEL (Z) .......... 23.5"

QUILL TRAVEL ...................... 5"

SPINDLE TAPER ..................... #40 NST

SPINDLE NOSE TO TABLE ............. 0-24"

SPINDLE CENTER TO COLUMN FACE ..... 17.3"

HEAD SWIVEL LEFT & RIGHT .......... 90 DEGREES

SPINDLE SPEED RANGE ............... 70 - 4,200 RPM

QUILL FEEDS (3) ................... .002, .004, .006 IPR

MAXIMUM WORKPIECE WEIGHT .......... 1,320 LBS

APPROX DIMENSIONS ................. 68"W x 64"D x 95"H

MACHINE WEIGHT .................... 4,100 LBS



EQUIPPED WITH:

TRAK MX-3 CONTROL, X,Y & Z CNC CONTROL

    THREE-AXIS SIMULTANEOUS INTERPOLATION INCLUDING

    HELICAL CANNED CYCLES

    IN MANUAL MODE 3-AXIS DRO

    RS232 PORT & FLOPPY DISK DRIVE

QUILL DIGITAL READOUT (Z IS HEAD UP & DOWN NOT QUILL)

SQUARE BOX WAYS AUTOMATIC LUBRICATION SYSTEM

POWER DRAW BAR

3 HORSE POWER SPINDLE MOTOR

MANUALS



TRANSITION FREELY FROM 3-AXIS CNC TO MANUAL

PERFECT FOR A TOOLROOM OR PROTO-TYPE WORK



INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE





FOR MORE INFORMATION: Call David at 973-497-7570
