Specification
Model Master 80

Power input AC 220V, 50 / 60Hz, 3 phase
Travel drive method Rack & Ppnion
Longitudinal rail Grinding l-rail
Transverse rail Double linear way
Overall width (A) 9,000 mm
Overall height (B) 2,000 mm
Overall depth (C) 2,000 mm
Cutting width (D) 7,600 mm
Rail gauge (E) 8,000 mm
Parking space 2,000 mm
Min. distance between 2 torches 100 mm
Track length (section) 3,000 mm
Weight 2,550 kgs


Master 20s / 25s / 30s / 35s / 40s is single drive on longitudinal axis

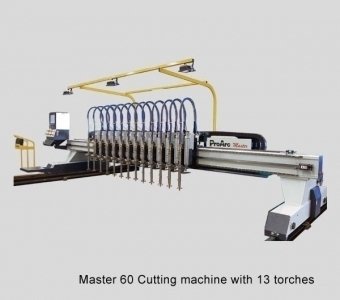

Master CNC cutting machine for plasma and oxyfuel cutting

The ProArc line of CNC cutting system is designed to be a reliable, cost-effective production machine to your high performance cutting requirements.

The Master CNC cutting machine is built to ensure a smooth and accurate performance. It is equipped with PC base CNC controller, linear way, anti-collection device, sensor THC, compact cutting table.... ProArc provides user-friendly broad choices and options that allow you to configure your CNC cutting system with the capacities, speed and accuracy of your needs.
