MTAB MAXMILL PLUS

Modell
MAXMILL PLUS
Ausgelaufenes Modell
Marke
Kontrolle
  • Spezifikation
    Spezifikationen in metrische Einheiten umrechnen
    X
    18.898"
    Y
    14.173"
    Z
    19.685"
    Leistung
    7.4 hp
    Drehzahl
    10,000 RPM
    # ATC
    20
    Verjüngung
    BT 4-
    Tisch-W
    13.78"
    Tabelle L
    23.622"
    # Achse
    4
    Kontrolle
    CNC (FANUC, Siemens, Mitsubishi)
    Abmessungen
    1900 x 2400 x 2550
    Gewicht
    3000 kg
  • Produktübersicht

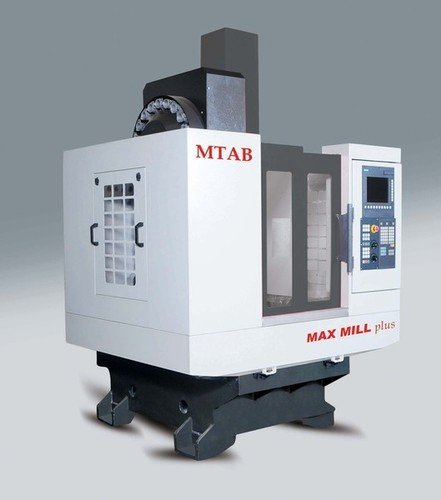

    MAXMILL Plus is a smart CNC vertical milling machine designed specifically for industrial specifications. It is a precision milling machine totally enclosed high visibility sliding guard. It uses industrial controls such as FANUC / SIEMENS. The machine is provided with widely placed precision LM guide ways for increased rigidity and high accuracy. The castings are internally reinforced with heavy ribs to resist flex and damp vibrations. It has an integrated base with coolant tank. The machine is equipped with cartridge type spindle power with optional 20 tool arm type ATC, Optional: 4th axis rotary table.

  • Über das Unternehmen
    MTAB Engineers Pvt.Ltd

    Industry 4.0 smart manufacturing digital training products and Smart Factory trainer systems
