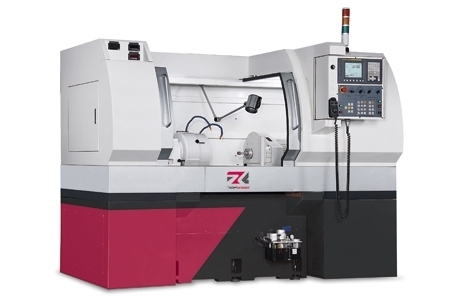

TOPKING I6-NC
i6-NC Grinding capacity 6~150 mm Max. workpiece length 150 mm Swiveling over table dia. 520 mm Workhead cover swiveling dia. 320 mm Max. table traverse 540 mm Max. table feeding speed-Z-axis 5 m/mi...

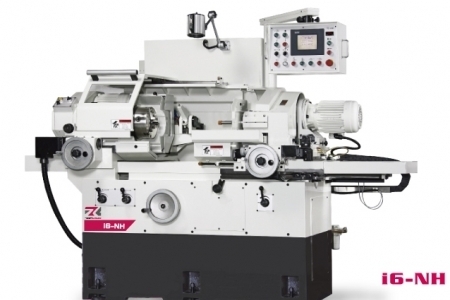

TOPKING I6-NH
i6-NH Grinding capacity 6~150 mm Max. workpiece length 150mm Swiveling over table dia. 520 mm Workhead cover swiveling dia. 320 mm Max. table traverse 540 mm Max. table feeding speed-Z-axis 7...
TOPKING LCG-3015
LCG - 3015 Standard Grinding Range Ø 1 ~ 40 mm Special Grinding Range Ø 30 ~ 60 mm Grinding Wheel Size (O.D.×W× I.D) Ø305× 150× Ø120mm Grinding Wheel Speed 1900 R.P.M Grinding Wheel Motor 7-1/2 HP ...
TOPKING LCG-4520
Model LCG - 4520 / 4525 Standard Grinding Range Ø 1 ~ 60 mm Special Grinding Range Ø 40 ~ 150 mm Grinding Wheel Size (O.D.×W× I.D) Ø455× 205 / 255× Ø228.6mm Grinding Wheel Speed 1500 R.P.M Grinding...
TOPKING LCG-4525
Model LCG - 4525 Standard Grinding Range Ø 1 ~ 60 mm Special Grinding Range Ø 40 ~ 150 mm Grinding Wheel Size (O.D.×W× I.D) Ø455×255× Ø228.6mm Grinding Wheel Speed 1500 R.P.M Grinding Wheel Motor 1...
TOPKING LCG-5020
規格SPECIFICATIONS LCG-5020 砂輪 Grinding Wheel 標準工作台工作物直徑 Standard grinding range (Dia.) Ø1 ~ Ø80 mm 特別工作台工作物直徑 Capacity increases with special arrangement Ø40 ~ Ø150 mm 砂輪尺寸 (外徑 x 寬 x 內徑) Grindin...
TOPKING LCG-5025
規格SPECIFICATIONS LCG-5025 砂輪 Grinding Wheel 標準工作台工作物直徑 Standard grinding range (Dia.) Ø1 ~ Ø80 mm 特別工作台工作物直徑 Capacity increases with special arrangement Ø40 ~ Ø150 mm 砂輪尺寸 (外徑 x 寬 x 內徑) Grinding...
TOPKING LCL-3015
LCL - 3015 Standard Grinding Range Ø 1 ~ 40 mm Special Grinding Range Ø 30 ~ 60 mm Grinding Wheel Size (O.D.×W× I.D) Ø305× 150× Ø120mm Grinding Wheel Speed 1900 R.P.M Grinding Wheel Motor 7-1/2 HP ...
TOPKING LCL-4520
LCL - 4520 Standard Grinding Range Ø 1~60 mm Special Grinding Range Ø 40~150 mm Grinding Wheel Size (O.D.×W× I.D) Ø 455 × 205 × Ø 228.6 mm Grinding Wheel Speed 1500 R.P.M. Grinding Wheel Motor 15 ...
TOPKING LCL-4525
LCL-4525 Standard Grinding Range Ø 1~60 mm Special Grinding Range Ø 40~150 mm Grinding Wheel Size (O.D.×W× I.D) Ø 455 × 255 × Ø 228.6 mm Grinding Wheel Speed 1500 R.P.M. Grinding Wheel Motor 15 HP ...
TOPKING LCL-5020
LCL - 5020 Standard Grinding Range Ø 1 ~ 80 mm Special Grinding Range Ø 40~150 mm Grinding Wheel Size (O.D.×W× I.D) Ø 510 × 205 × Ø 304.8 mm Grinding Wheel Speed 1200 R.P.M. Grinding Wheel Motor 2...
TOPKING LCL-5025
LCL - 5025 Standard Grinding Range Ø 1 ~ 80 mm Special Grinding Range Ø 40~150 mm Grinding Wheel Size (O.D.×W× I.D) Ø 510 × 255 × Ø 304.8 mm Grinding Wheel Speed 1200 R.P.M. Grinding Wheel Motor 20...
TOPKING LSG-1545H/AH
規格/型號 Spec./Model LSG-1545H/AH Grinding surface of table 工作台面積 150 x 450 mm Max. grinding surface 最大研磨面積 150 x 450 mm Max. distance center of spindle to table 工作台面至主軸中心最大距離 450 mm Total Max. saf...
TOPKING LSG-1545M
規格/型號 Spec./Model LSG-1545M Grinding surface of table 工作台面積 150 x 450 mm Max. grinding surface 最大研磨面積 150 x 450 mm Max. distance center of spindle to table 工作台面至主軸中心最大距離 450 mm Total Max. safety...
TOPKING LSG-2045H/AH
規格/型號 Spec./Model LSG-1545H/AH Grinding surface of table 工作台面積 200 x 450 mm Max. grinding surface 最大研磨面積 150 x 450 mm Max. distance center of spindle to table 工作台面至主軸中心最大距離 450 mm Total Max. safe...
TOPKING LSG-2045M
規格/型號 Spec./Model LSG-2045M Grinding surface of table 工作台面積 200 x 450 mm Max. grinding surface 最大研磨面積 200 x 450 mm Max. distance center of spindle to table 工作台面至主軸中心最大距離 450 mm Total Max. safety t...
TOPKING LSG-2550H/AH
規格/型號 Spec./Model LSG-2550H/AH Grinding surface of table 工作台面積 250 x 500 mm Max. grinding surface 最大研磨面積 250 x 500 mm Max. distance center of spindle to table 工作台面至主軸中心最大距離 500 [Option:600] mm Tot...
TOPKING LSG-50100AHR
規格/型號 Spec./Model LSG-50100AHR Grinding surface of table 工作台面積 mm 500 x 1000 mm Max. grinding surface 最大研磨面積 mm 500 x 1000 mm Max. distance center of spindle to table 工作台面至主軸中心最大距離 mm 600 [opt:8...
TOPKING OGC-1224
規格 SPECIFICATIONS OGC-1224 能力 Capacity 工作台最大旋徑 Swing Over Table Ø320 mm 兩頂心間最大距離 Distance Between Centers 600 mm 最大研磨直徑 Max. Grinding Diameter Ø300 mm 兩頂心間最大承受重量 Max. Load Held Between Cent...

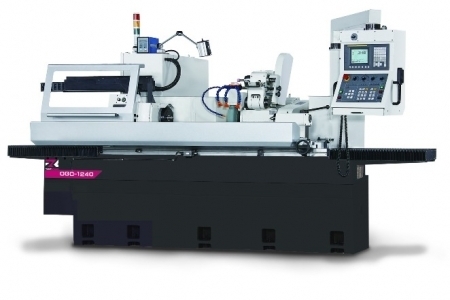

TOPKING OGC-1240
規格 SPECIFICATIONS OGC-1240 能力 Capacity 工作台最大旋徑 Swing Over Table Ø320 mm 兩頂心間最大距離 Distance Between Centers 1000 mm 最大研磨直徑 Max. Grinding Diameter Ø300 mm 兩頂心間最大承受重量 Max. Load Held Between Cen...
TOPKING OGC-1624
規格 SPECIFICATIONS OGC-1624 能力 Capacity 工作台最大旋徑 Swing Over Table Ø420 mm) 兩頂心間最大距離 Distance Between Centers 600 mm 最大研磨直徑 Max. Grinding Diameter Ø400 mm 兩頂心間最大承受重量 Max. Load Held Between Cent...
TOPKING OGC-1640
規格 SPECIFICATIONS OGC-1640 能力 Capacity 工作台最大旋徑 Swing Over Table Ø420 mm 兩頂心間最大距離 Distance Between Centers 1000 mm 最大研磨直徑 Max. Grinding Diameter 400 mm 兩頂心間最大承受重量 Max. Load Held Between Cente...
TOPKING OGC-816
OGC-816 Swing Over Table Ø200 mm Distance Between Centers Ø400mm Max. Grinding Diameter Ø180mm Max. Load Held Between Centers 60kg Wheel OD × Width × ID (SIZE) Ø305×38×Ø127mm Linear Veloci...
TOPKING OGN-1224
規格 SPECIFICATIONS OGN-1224 能力 Capacity 工作台最大旋徑 Swing Over Table 600 mm 兩頂心間最大距離 Distance Between Centers 320 mm 兩頂心間最大承受重量 Max. Load Held Between Centers 100 kg 最大研磨直徑 Max. Grinding Diameter 28...

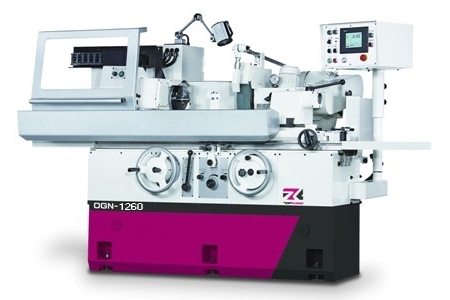

TOPKING OGN-1260
規格 SPECIFICATIONS OGN-1260 能力 Capacity 工作台最大旋徑 Swing Over Table 1500 mm 兩頂心間最大距離 Distance Between Centers 320 mm 兩頂心間最大承受重量 Max. Load Held Between Centers 100 kg 最大研磨直徑 Max. Grinding Diamete...
TOPKING OGN-1280
規格 SPECIFICATIONS OGN-1280 能力 Capacity 工作台最大旋徑 Swing Over Table 2000 mm 兩頂心間最大距離 Distance Between Centers 320 mm 兩頂心間最大承受重量 Max. Load Held Between Centers 100 kgs 最大研磨直徑 Max. Grinding Diamet...
TOPKING OGN-1624
規格 SPECIFICATIONS OGN-1624 能力 Capacity 工作台最大旋徑 Swing Over Table 600 mm 兩頂心間最大距離 Distance Between Centers 420 mm 兩頂心間最大承受重量 Max. Load Held Between Centers 100 kg 最大研磨直徑 Max. Grinding Diameter 38...
TOPKING OGN-1660
規格 SPECIFICATIONS OGN-1660 能力 Capacity 工作台最大旋徑 Swing Over Table 1500 mm 兩頂心間最大距離 Distance Between Centers 420 mm 兩頂心間最大承受重量 Max. Load Held Between Centers 100 kg 最大研磨直徑 Max. Grinding Diamete...
TOPKING OGN-1680
規格 SPECIFICATIONS OGN-1680 能力 Capacity 工作台最大旋徑 Swing Over Table 2000 mm 兩頂心間最大距離 Distance Between Centers 420 mm 兩頂心間最大承受重量 Max. Load Held Between Centers 100 kgs 最大研磨直徑 Max. Grinding Diamet...

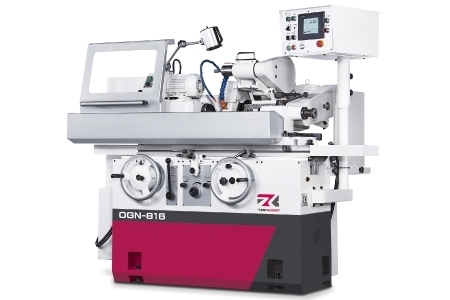

TOPKING OGN-816
OGN-816 Swing Over Table Ø200 mm Distance Between Centers 400mm Max. Grinding Diameter Ø180mm Max. Load Held Between Centers 60kg Wheel OD × Width × ID (SIZE) Ø305×38×Ø127mm Linear Velocity 30...

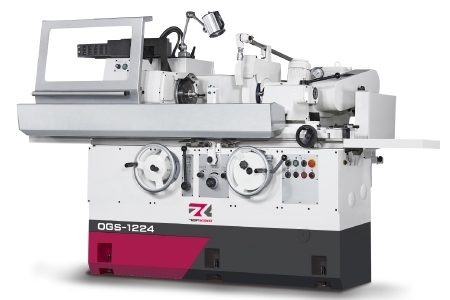

TOPKING OGS-1224
TOPKING OGS-1240
規格 SPECIFICATIONS OGS-1240 能力 Capacity 工作台最大旋徑 Swing Over Table 1000 mm 兩頂心間最大距離 Distance Between Centers 320 mm 兩頂心間最大承受重量 Max. Load Held Between Centers 100 kg 最大研磨直徑 Max. Grinding Diamete...
TOPKING OGS-1624
規格 SPECIFICATIONS OGS-1624 能力 Capacity 工作台最大旋徑 Swing Over Table 600 mm 兩頂心間最大距離 Distance Between Centers 420 mm 兩頂心間最大承受重量 Max. Load Held Between Centers 100 kg 最大研磨直徑 Max. Grinding Diameter 38...
TOPKING OGS-1640
規格 SPECIFICATIONS OGS-1640 能力 Capacity 工作台最大旋徑 Swing Over Table 1000 mm 兩頂心間最大距離 Distance Between Centers 420 mm 兩頂心間最大承受重量 Max. Load Held Between Centers 100 kg 最大研磨直徑 Max. Grinding Diamete...

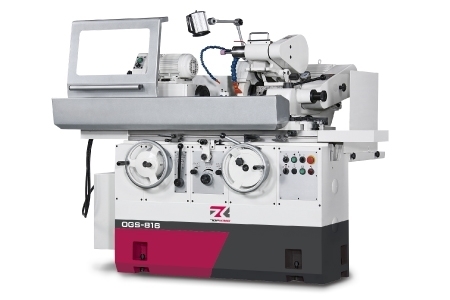

TOPKING OGS-816
規格 SPECIFICATIONS OGS-816 能力 Capacity 工作台最大旋徑 Swing Over Table 400 mm 兩頂心間最大距離 Distance Between Centers 200 mm 兩頂心間最大承受重量 Max. Load Held Between Centers 60 kg 最大研磨直徑 Max. Grinding Diameter 160 ...

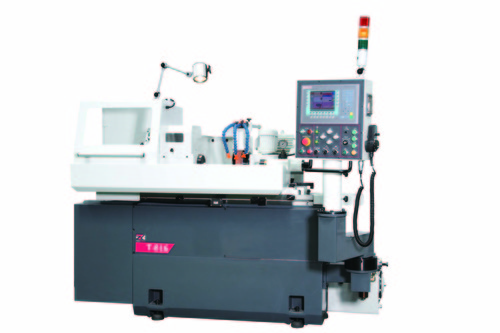

TOPKING T-816
High Efficiently Control System With Sketches Communication Operation -Press "start" button to auto. steps grinding dressing & compensation - Slider moving by hand wheel to right position & input...
